Text Terminal

The QMC Text Terminal was the best project that I worked on during my time at QMC, probably because so many people people worked on the project and because of the many spin-offs.

A new text-handling display system (the QMC text terminal) is described. Its main features are the ability to subdivide the screen into pages and a colour display. In this way, the user is able to consult a number of pages at one time, extract them, update them and file them. This represents a step towards the ‘electronic desk’. Abstract from QMC Text Terminal.

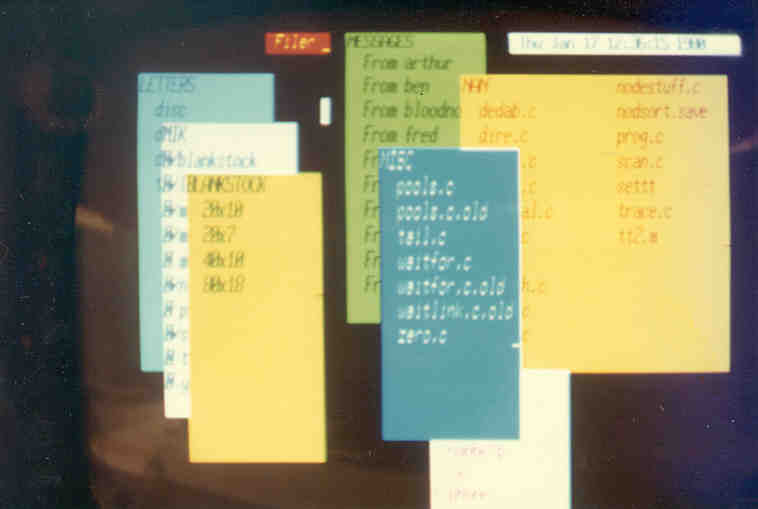

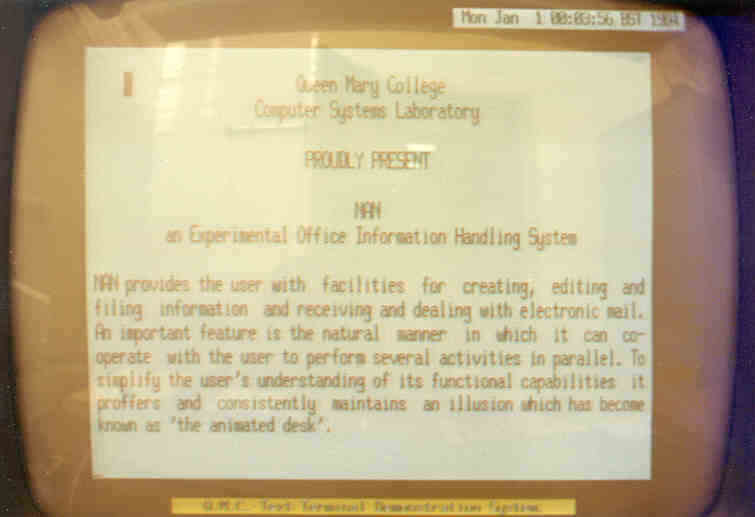

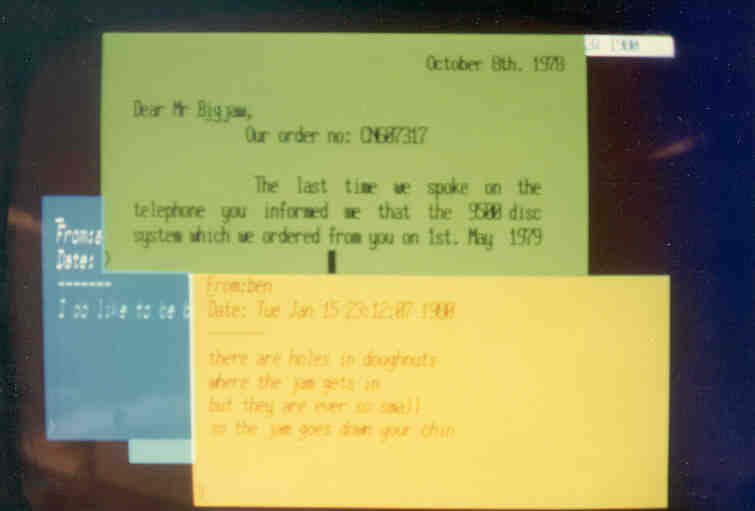

QMC Text Terminal 1 1978 QMC Text Terminal 5 1978 QMC Text Terminal 2 1978 QMC Text Terminal 3 1978
QMC Text Terminal 4 1978

These pictures were taken by Mik Lamming in 1978; I think that I have the originals. Note the various input devices: keyboard, joystick, mouse, extra keypad and cigarette lighter (on the left of the keyboard). The little white box on the far left housed the controls for the display processor; which together with the MUT were under the large Barco TV studio monitor.   You can click on any image to view it full size.

Top

Text Terminal Papers

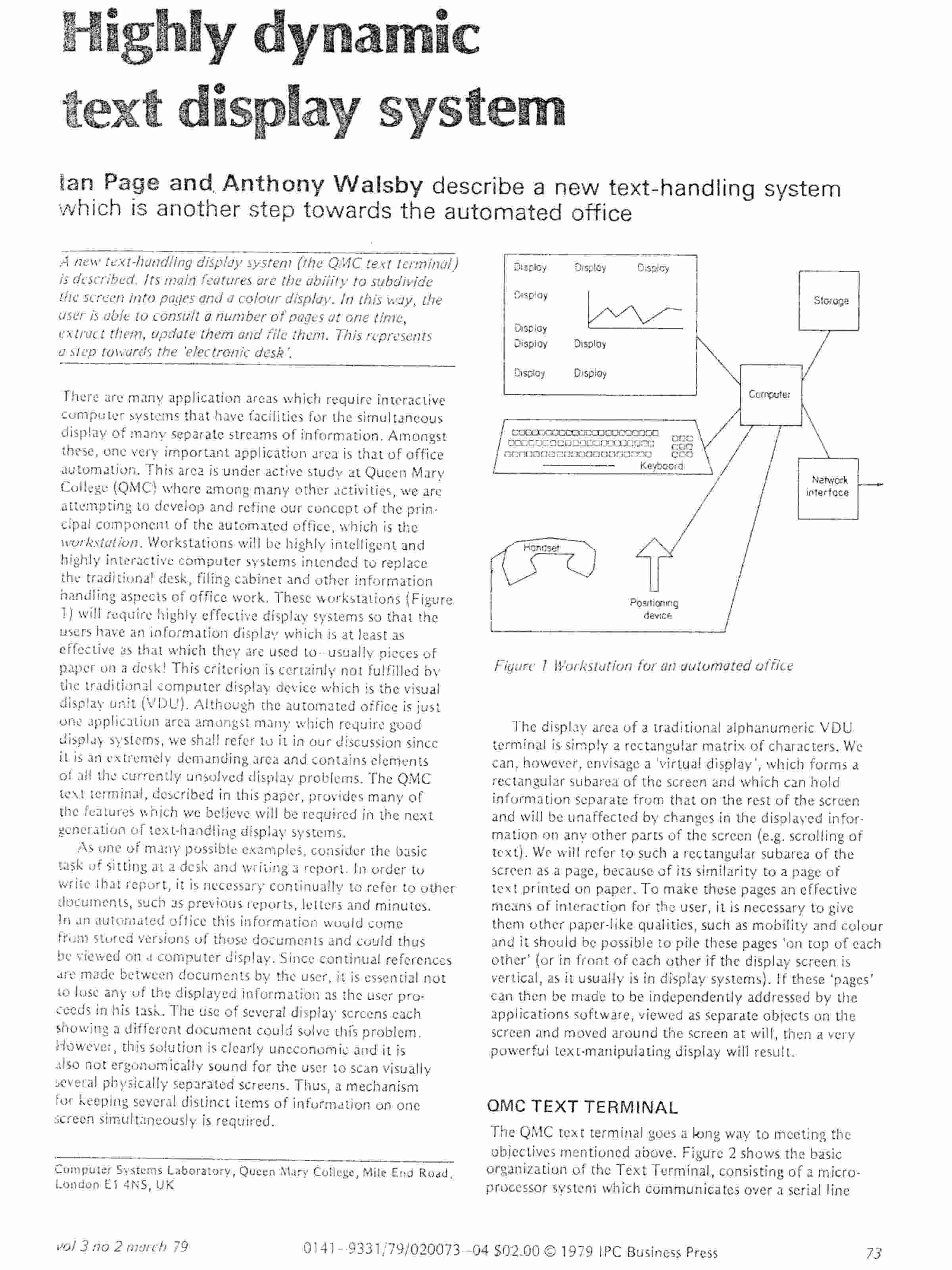

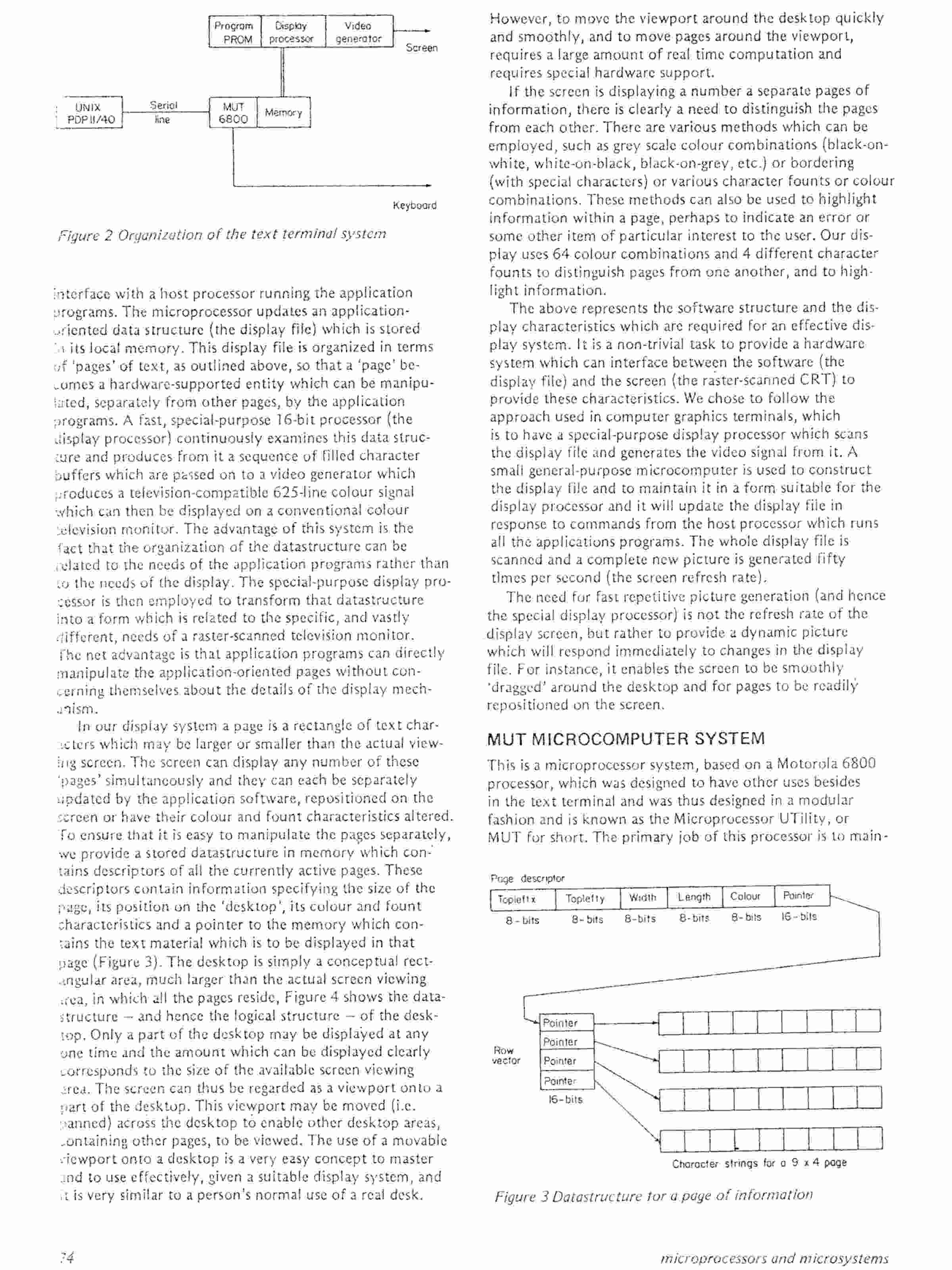

Highly dynamic text display system

page 1
page 2
page 3
page 4

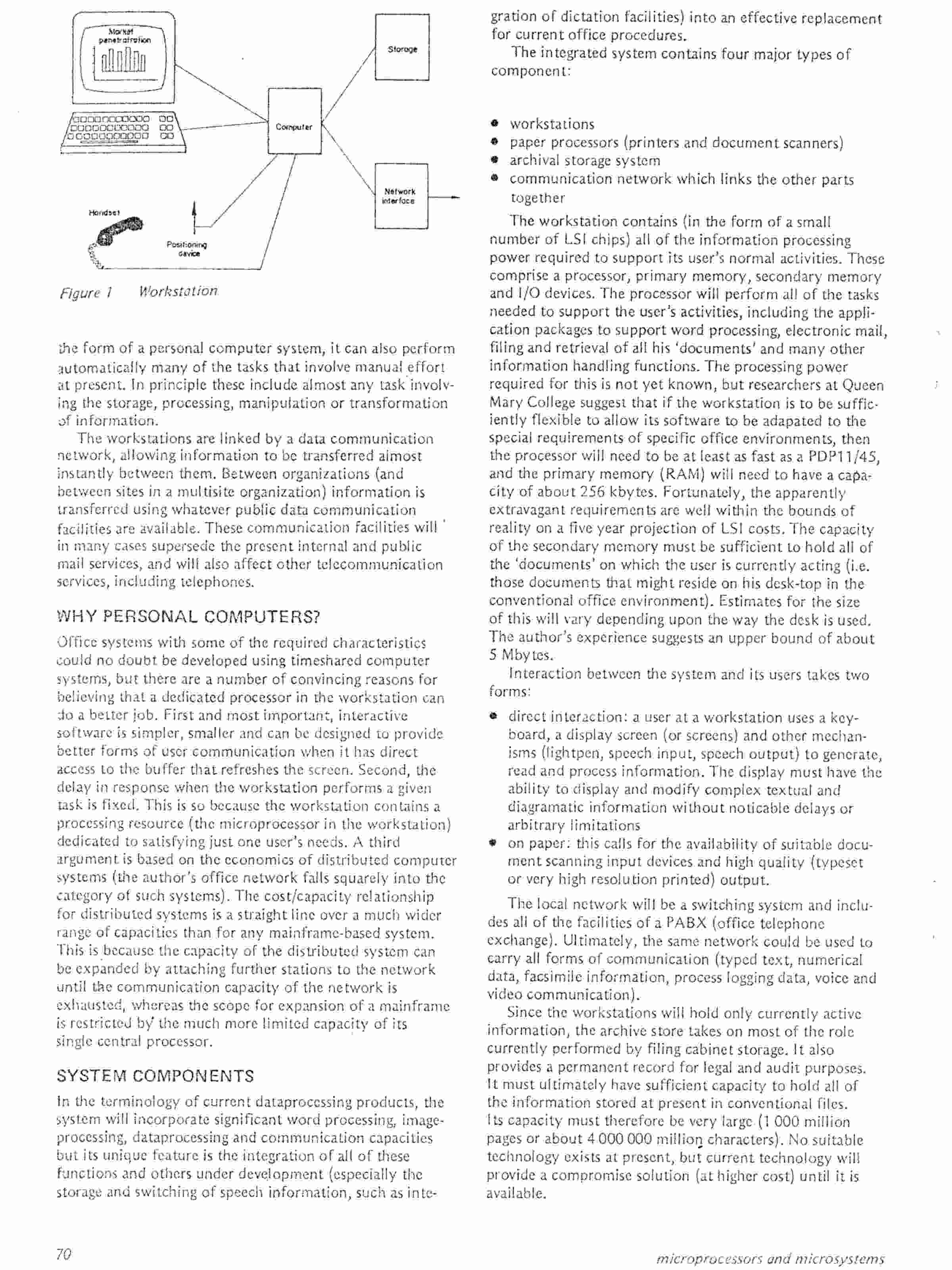

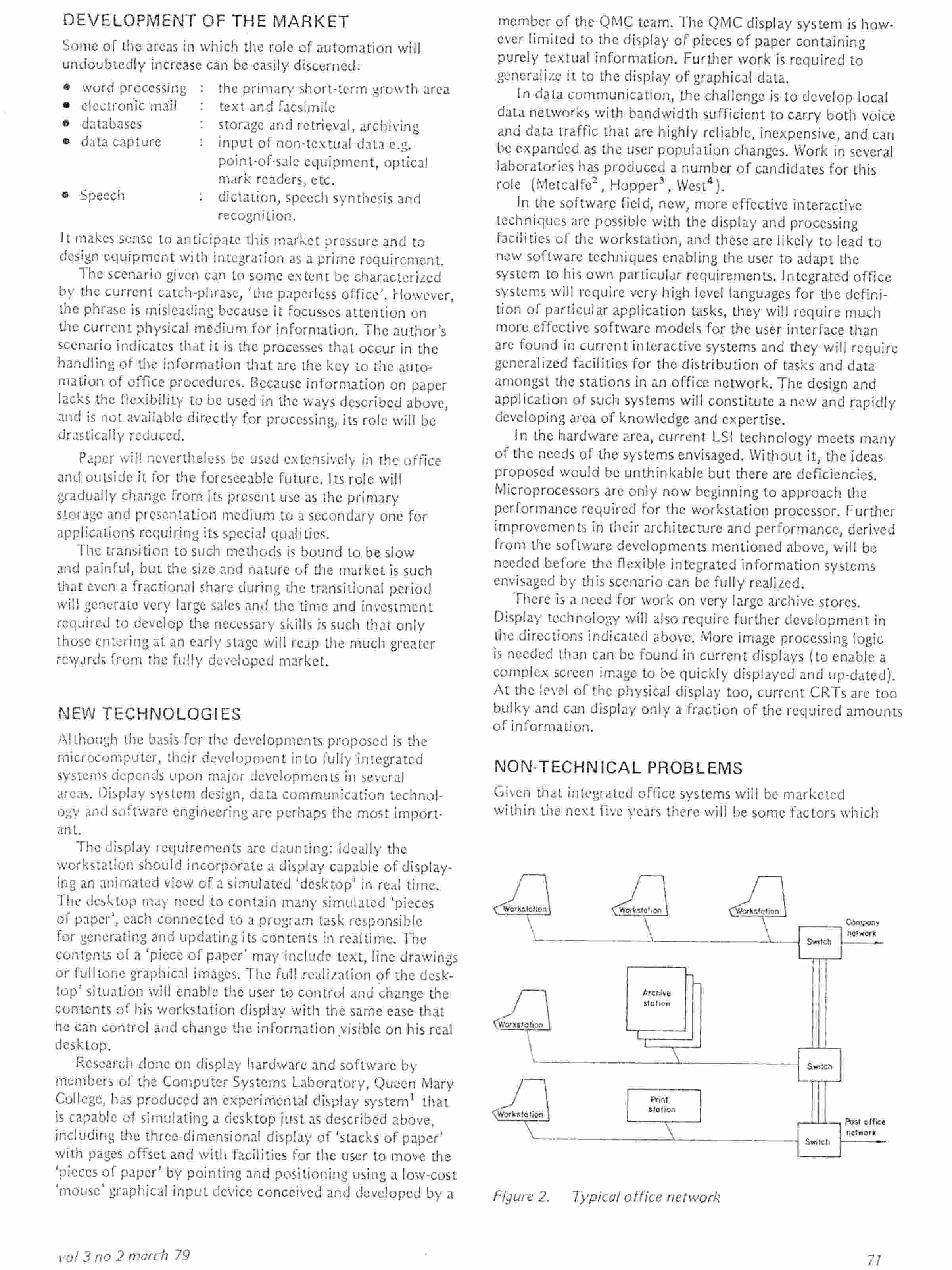

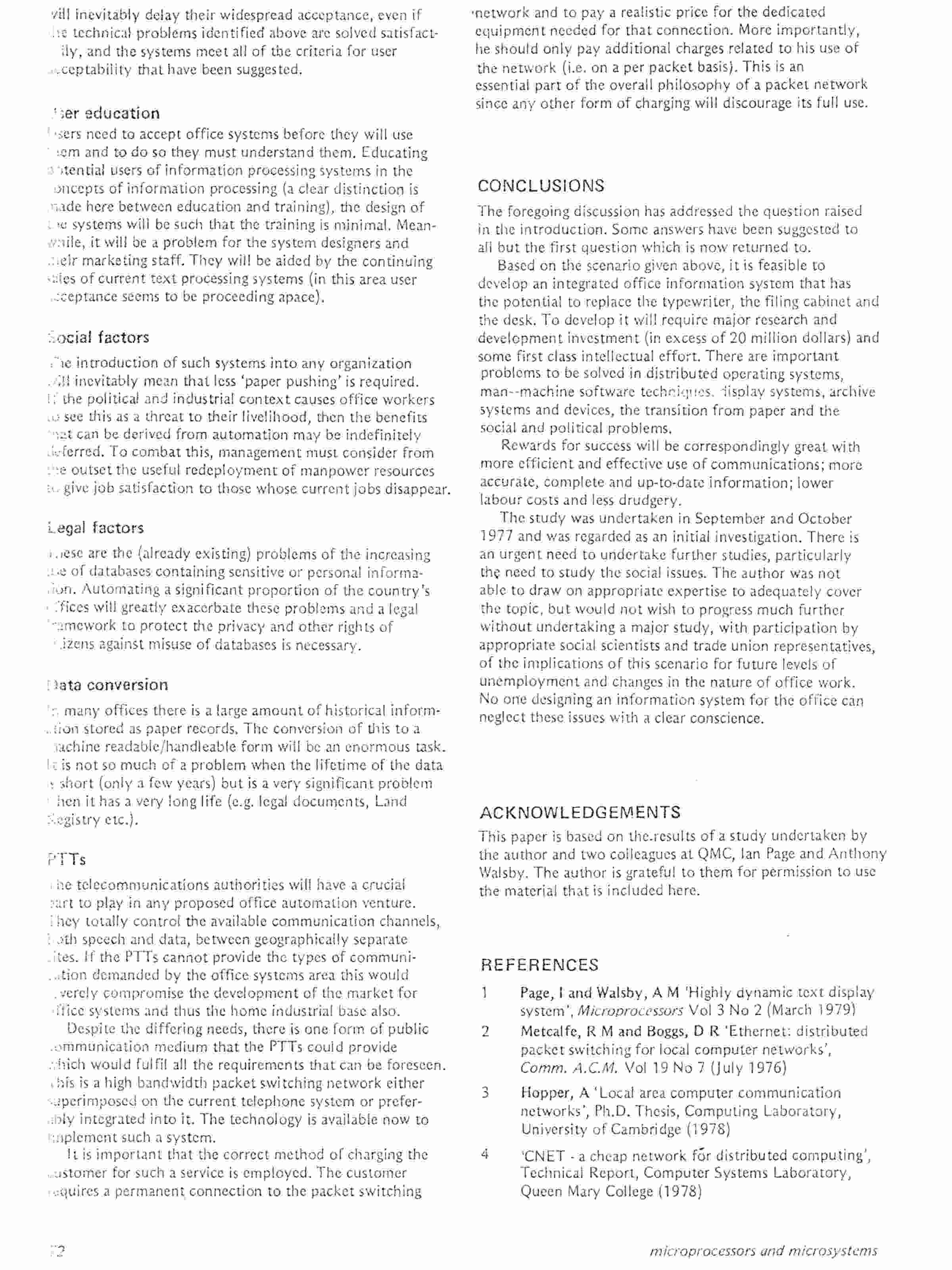

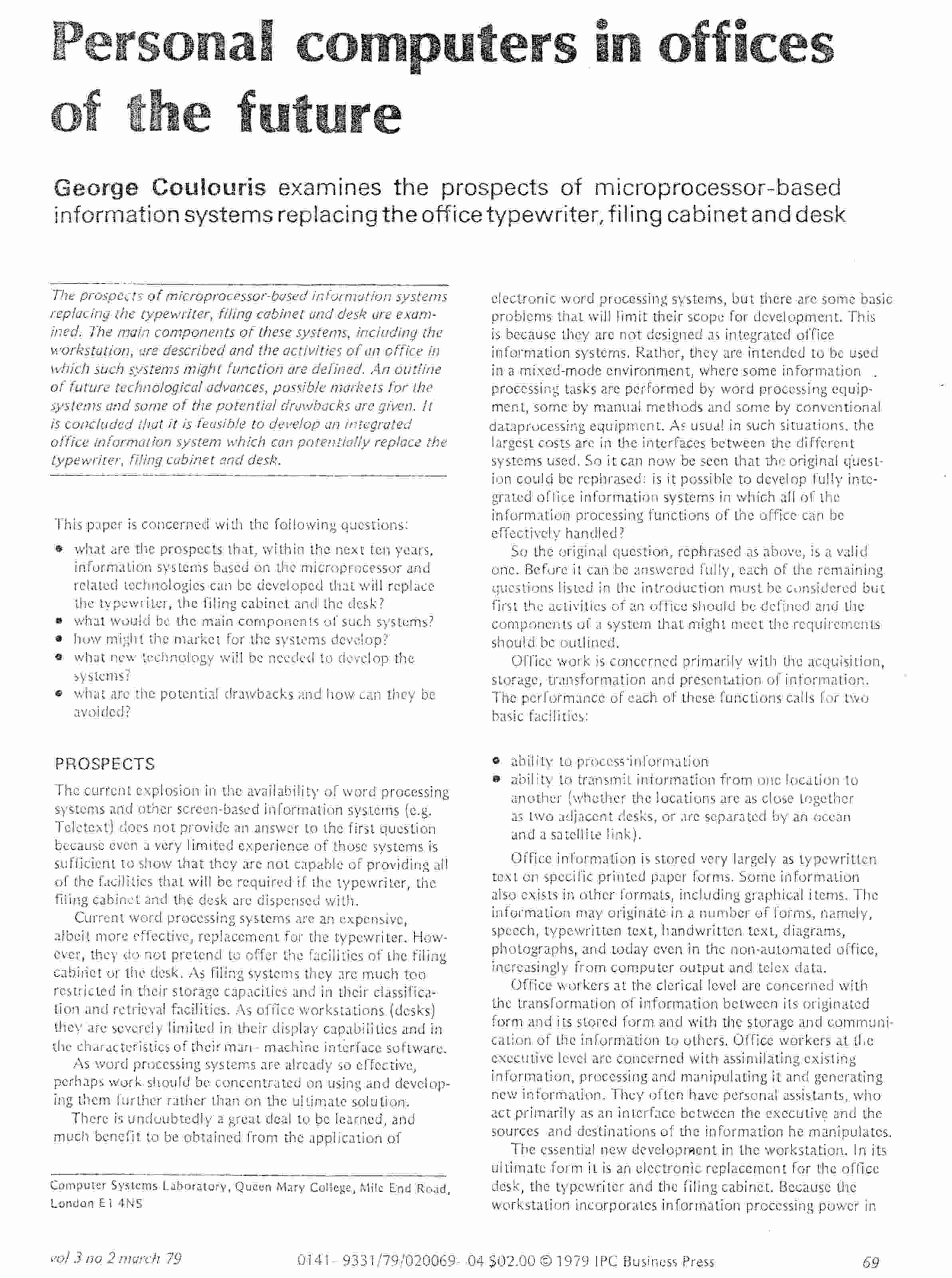

PCs in Offices of the Future

page 1
page 2
page 3
page 4

The Potential For Integrated Office Informations – to be included
